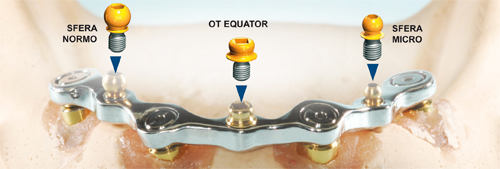

The low profile OT Equator attachment for bar connections is manufactured with a 1.6 mm thread, 2 sided titanium bonding sleeve, and a base spacer. This new system offers laboratories two cost effective options for placing the attachment on CAD/CAM milled or cast bar overdenture connections. The OT Equator is the smallest attachment in it's classification. Dimensions are 2.1 mm high and 4.4 mm wide with cap in place.
Technicians can select between screwing the threaded OT Equator directly into a milled site, or use the base spacer and bonding sleeve with traditional casting techniques which eliminates the need for drilling and tapping. Once the bar is cast, the OT Equator and sleeve are screwed together and bonded directly into the attachment location.
The OT Equator kit comes complete with 2 titanium nitrate coated attachments, 2 titanium bonding sleeves, 2 base spacers, an assortment of caps and 2 stainless steel housings.







 Castable

---

Ref. 092ECQ

KIT CONTAINS:
• 2 SINGLE MALES
• 2 STAINLESS STEEL HOUSINGS
• 4 RETENTIVE CAPS
(2 soft, 2 stan dard)

Implants

---

OT EQUATOR FOR IMPLANTS

Ref 130

KIT CONTAINS:
• 1 TITANIUM ABUTMENT
• 1 TITANIUM HOUSING
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS
(1 extra -soft, 1 soft, 1 stan dard, 1 strong)



 Ref 030

• 1 TITANIUM ABUTMENT



---

Bars

---

 OT EQUATOR

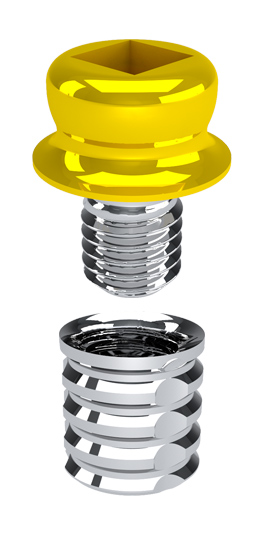

threaded sleeve system for bonding

Ref. 160EQB

KIT CONTAINS:
• 2 EQUATOR THREADED for titanium sleeve (1.6 mm thread)
• 2 THREADED SLEEVES (1.6 mm thread)
• 2 STAINLESS STEEL HOUSINGS
• 2 EQUATOR SPACERS
• 8 RETENTIVE CAPS
(2 extra -soft, 2 soft, 2 stan dard, 2 processing )



---

 ELASTIC SEEGER
Ref. 158ESA

KIT CONTAINS:
• 1 CASTABLE CYLINDER FOR SEEGER
• 1 SELF-EXTRACTING SEEGER
• 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGER



---

Caps and Smartbox kits

---

CAPS ASSORTMENT KIT

Ref. 192ECE

---

     Ref. 140CEV     • 4 RETENTIVE CAPS - violet "STRONG" 2700g

---

     Ref. 140CET      • 4 RETENTIVE CAPS - clear "STANDARD" 1800g

---

     Ref. 140CER     • 4 RETENTIVE CAPS - pink "SOFT" 1200g

---

      Ref. 140CEG     • 4 RETENTIVE CAPS - yellow "EXTRA-SOFT" 600g

---

       Ref. 140CEN     • 4 PROCESSING CAPS - black (for laboratory use ONLY)

---

       Ref. 141CAE     • 2 STAINLESS STEEL HOUSINGS

---

        Ref. 141CTE     • 2 TITANIUM HOUSINGS

---

        Ref. 330SBE     • 1 SMARTBOX HOUSING WITH BLACK CAP

---

        Ref. 335CSB     • 4 BLACK SMARTBOX CAPS (for laboratory use ONLY)

---

 Ref. 339SFE2     • 1 EQUATOR THREADED 2.0mm (DIRECT INTO 2mm thread)

---

 Ref. 339SFE      • 1 EQUATOR THREADED 1.6mm (for titanium sleeve)

---

 Ref. 239GSF      • 1 TITANIUM SLEEVE (1.6mm thread)

---

   Ref. 339SSE      • 1 OT EQUATOR SPACER

---

 Ref. 158VAE      • 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGER

---

   Ref. 158SAE      • 1 SELF-EXTRACTING WHITE SEEGER (for bar locking )

---

 Ref. 158CCE       • 1 CASTABLE CYLINDER height 2,5mm (for seeger)

---

   Ref. 158CCAE     • 1 HIGH CASTABLE CYLINDER height 3,5mm (for seeger)

---

 Accessories

---

 Ref. 144TTE       • 1 OT EQUATOR TITANIUM TRANSFER + TITANIUM SCREW

---

   Ref. 144MTE      • 2 IMPRESSION COPINGS (for individual tray )

---

 Ref. 044CAIN      • 2 IMPRESSION COPINGS NORMAL SIZE - OT EQUATOR WITH CAP

---

 Ref. 144AE         • 2 LABORATORY ANALOGS

---

Tools

---

Ref. 74AC01      • 1 PARALLELOMETER KEY "NORMAL SIZE"

---

 Ref. 774CHE      • 1 OT EQUATOR SQUARE SCREW DRIVER + HOLDER (square 1.25mm)





---

 Ref. 774HC        • 1 OT EQUATOR interchangeable HOLDER

---

  Ref. 760CE        • 1 SQUARE DRIVER CONNECTOR for torque controller contra angle (square 1.25mm)

---

 Ref. 185SIS        • 1 METAL INSERTION TOOL FOR SEEGER

---

 Ref. 485IC       • 1 MULTIUSE CAPS INSERTER/EXTRACTOR TOOL

---

 Ref. 491EC       • 1 MULTIUSE EXTRACTOR TOOL FOR CAPS (WITH HOLE STEM HOLDER)

---

 Ref. 760 CRD

   RATCHET TORQUE CONTROL DEVICE (For Ot Equator , Sphero block
   and flex 15/35Ncm Strenght - Max 50Ncm torque, suggested 25Ncm)
